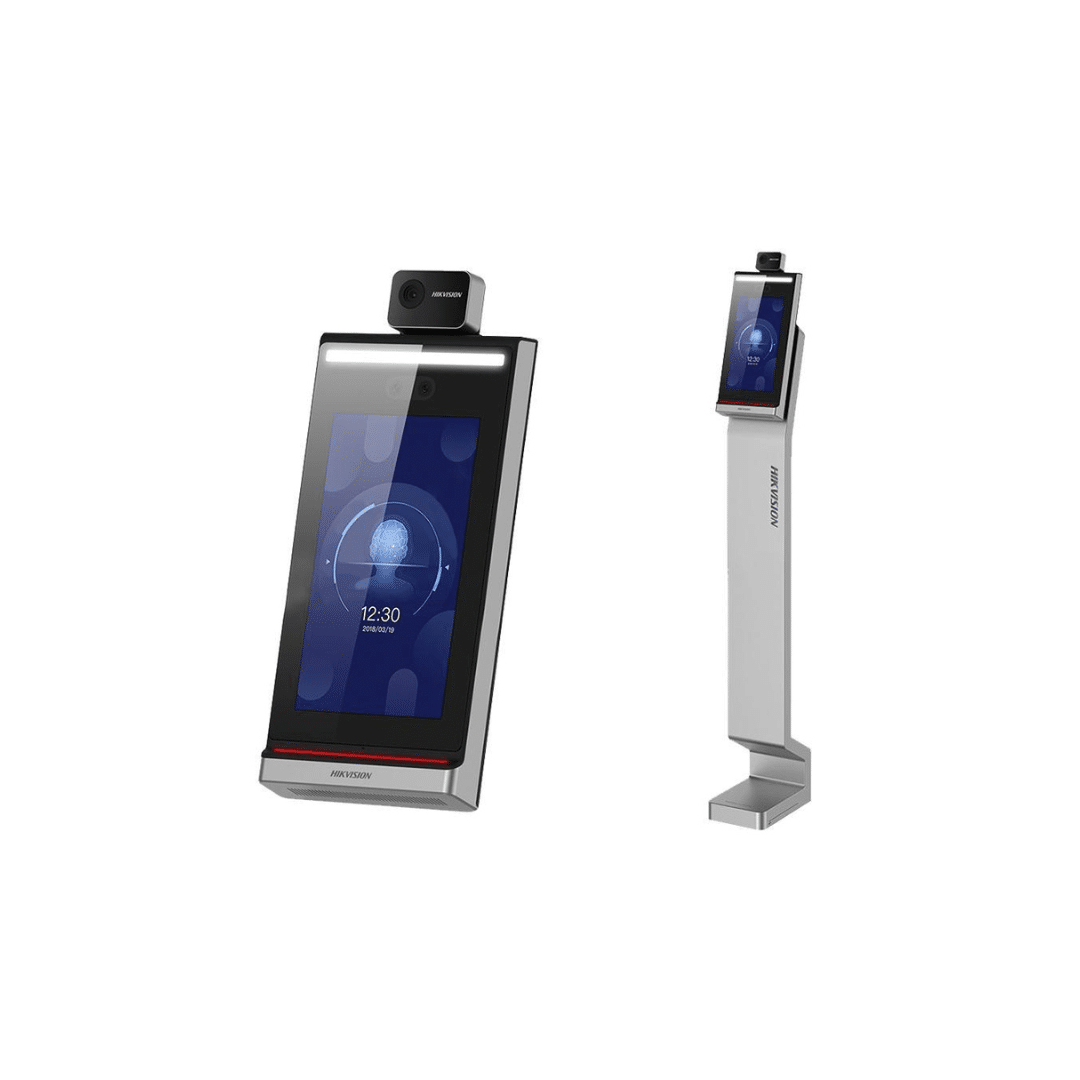

Hikvision DS-K5604A-3XF Face Recognition Terminal

Hikvision DS-K5604A-3XF Face Recognition Terminal

Face recognition terminal is a kind of access control device integrated with fever screening function, which supports plug & play (rapid deployment free of wiring, installation, or configuration).

Plus, it can fast take skin-surface temperature, which can be widely applied in multiple scenarios and sectors, such as enterprises, stations, dwellings, factories, schools, campus and so on.


  • Plug and Play, it supports rapid deployment. Free of wiring, installation or configuration
  • Supports Vanadium Oxide uncooled sensor to measure target’s temperature
  • Fast temperature measurement mode: Detects face and takes skin-surface temperature without identity authentication
  • Multiple authentication modes with temperature measure are available.
  • Displays temperature measurement results on the authentication page.
  • Transmits online and offline temperature information to the client software via TCP/IP communication and saves the data on the client software.
  • Face mask wearing alert. If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time the authentication or attendance is verified.
  • Triggers voice prompt when detecting fever.
  • Integrated design with stand bracket.
  • Communicates with the third-party turnstile via IO output or Wiegand.
  • Adjustable supplement light brightness.
  • High performance processor with deep learning algorithm.
  • Transmits and saves the comparison results and the captured pictures to the client software or others.
  • NTP, manually time synchronization and auto synchronization.
  • Watchdog design for protecting the device and ensuring device running properly.
  • Audio prompt for authentication result.


SKU: DS-K5604A-3XF Category:

Technical Information

  • 50,000 face capacity, 100,000 event capacity
  • Face recognition duration ≤ 0.2 s/User; face recognition accuracy rate ≥ 99%
  • Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: ± 0.5 °C without black body calibration
  • Recognition distance: 0.3 to 2 m
  • Configurable door status (open/close) when detecting fever

* Bio metric recognition products are not 100% applicable to anti-spoofing environments. If you require a higher security level, use multiple authentication modes.
