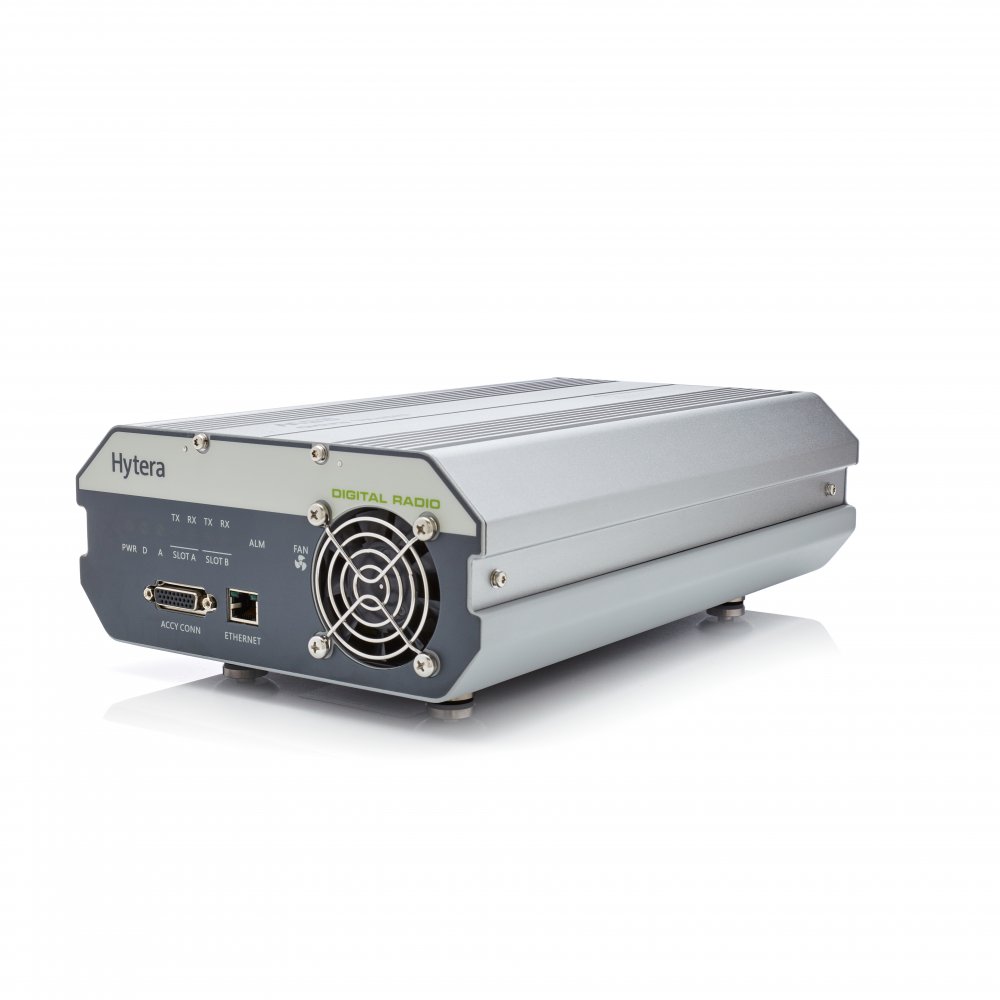

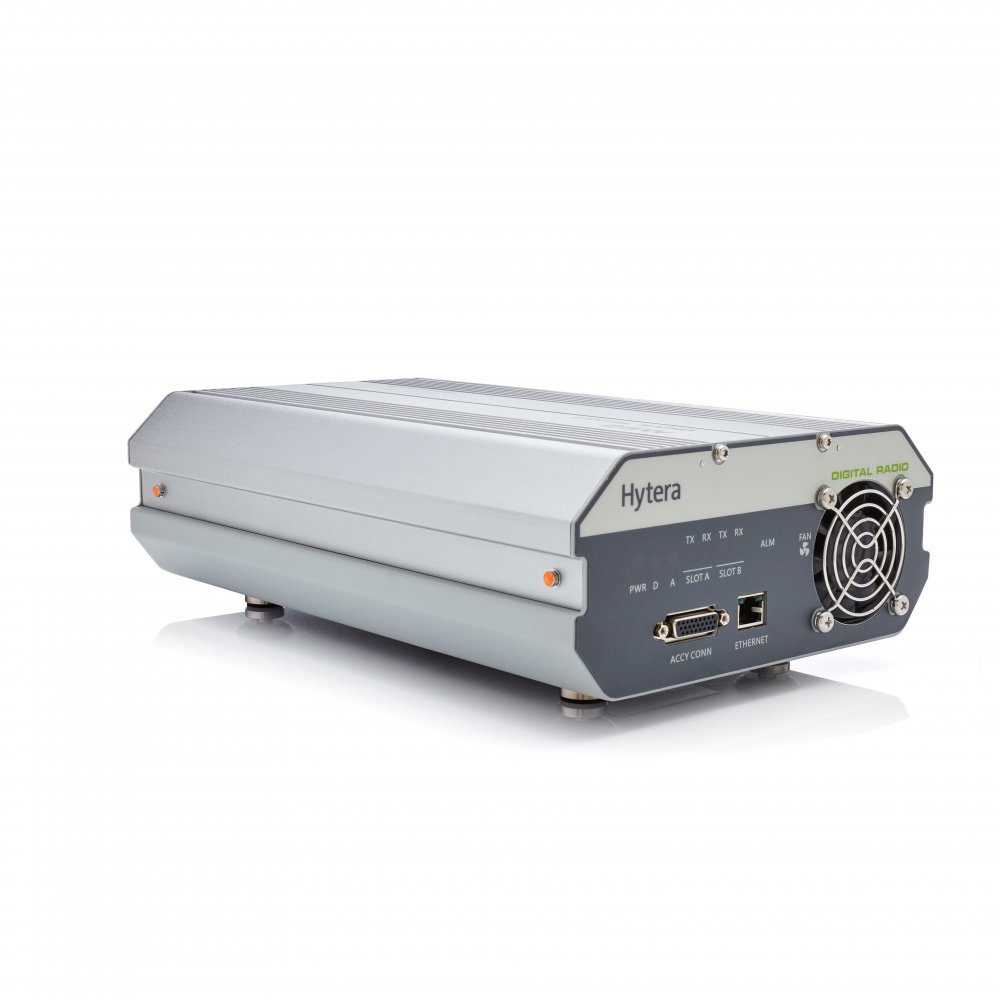

Hytera RD625 Digital DMR Repeater

Description and Features

Hytera RD625 Digital DMR Repeater offers a wide-area private network connection, voice and data communication. Thanks to Digital Audio Streaming, users can stream in a dual time slots, allowing for capability expansion via future development.

Next, AC/DC Auto Switch integrates an internal power supply to support a battery floating charge. The power supports 13.6V±15% DC and 90V-264V AC. If the AC power is cut off, the DC power (battery) automatically takes over without interruption. Repeater Diagnostic and Control (RDAC) also supports remote IP connection to monitor, diagnose and control the repeater. Thus, it is able to support multiple master network connections to allow the radio administrator to monitor multiple radio networks.

Additionally, the All-In-One Compact Design integrates RF, power supply, and duplexes into one box. In that way, it makes this repeater smaller, lighter, and easier for wall-mount installation and indoor coverage.

Along with that, Digital Back-to-Back Interconnect enables analogue users to communicate to digital users and vice versa. So this feature is particularly important for a smooth migration from analogue to digital world. This feature allows a radio user to make a telephone call; or a telephone user to make either a group or private call to radio users.

Finally, it supports analogue voice and signalling scan, allowing coverage for analogue voice users from different groups.

Technical Information

  • Brand: Hytera
  • Manufacturer Part Number: RD625
  • SKU: RD625
  • Group/Type: Digital Licenced Repeater
  • Dimensions: Height (mm): 108 mm x Width (mm): 210 mm x Depth (mm): 348 mm
  • Band (VHF or UHF): UHF, VHF
  • Channels: 2
  • Signalling Type: CTCSS, DCS, DMR
  • Ingress Protection: IP54
  • Warranty: 2 years
SKU: RD625 Categories: , Brand:

Compact, Light and Multi-Site Coverage

Hytera RD625 Digital Licenced Repeater is an entry tier repeater, in a compact size. It is ideal for quick installation and programming, it provides reliable radio coverage in buildings and large sites, operating in both analogue and digital mode in order to improve the range of your communications.

Mixed mode operation allows for the Hytera RD625 repeater to automatically detect the signal it is receiving, switching between both analogue and digital automatically. Alongside the mixed mode operation, a priority scan function will switch transmission in order to receive and deliver a priority call, as well as a 40-bit enhanced encryption as standard on latest firmware ensuring that transmissions between users are always secure.

Hytera RD625 Digital DMR Repeater is built to IP54 standard being safeguarded against splashes of water with a limited IP against dust. Flexible networking means that it allows numerous radios across service locations to communicate across both voice and data services.
